Step 4

In this step we will wrap up our snake game. We will,

  1. Add positive feedback when we collect a fruit and negative feedback when we lose the game

  2. Create a way to reset the game

4.1 Using external scripts

When you eat a fruit, we’ll give positive feedback by briefly flashing the background. This is a perfect chance to learn how to use external scripts—a huge part of real-world coding is reusing good, existing pieces.

We’ve prepared two small files you’ll plug in:

  1. post.wgsl — a tiny post-process shader that tints/brightens the screen based on the color provided.

  2. post.shs — a Shards setup that hooks this shader into your render pipeline and exposes a terminal-bg-color parameter you can set from your game logic.

First, add these two scripts into your folder, on the same level as your snake game script.

Next, to include post.shs into our game script, we use @include

@include("post.shs")

Now to flash the screen, we just have to change terminal-bg-color. First, let's initialize it in our main wire

@f4(0.0 0.0 0.0 1.0) | Set(Name: terminal-bg-color Global: true)

Next, let's create a @wire which we can easily call, that will very quickly call using Detach to change it to a specified colour then very quickly change it back to its original colour. We can do this by using Lerp which will linearly interpolate between two values. Then when used in combination with Animation.Timer, we can interpolate from one value to another within a specified time.

    @f4(0.0 0.0 0.0 1.0) >= original-color
    original-color | Set(Name:terminal-bg-color Global: true)

@wire(pulse-bg { ;; flashes the sreen
        {Take("duration") = pulse-dur}
        {Take("color") = pulse-color}
        Animation.Timer(Duration: pulse-dur Action: {
        original-color > terminal-bg-color
        Stop
        }) | Div(pulse-dur)
        Lerp(First: pulse-color Second: original-color) > terminal-bg-color
} Looped: true)

Then, lastly, we call our pulse-bg wire using Detach and provide the necessary information, duration and color, as a table.

    {duration: 0.35 color: @f4(1.0 1.0 1.0 1.0)}
    Detach(pulse-bg)
    @include("post.shs")

    @wire(pulse-bg { ;; flashes the sreen
        {Take("duration") = pulse-dur}
        {Take("color") = pulse-color}
        Animation.Timer(Duration: pulse-dur Action: {
        original-color > terminal-bg-color
        Stop
        }) | Div(pulse-dur)
        Lerp(First: pulse-color Second: original-color) > terminal-bg-color
    } Looped: true)

    @wire(snake-game-logic {
        ;; move snake

        Inputs.KeyDown("right" {
            0 | Update(input-state "direction")
        })
        Inputs.KeyDown("down" {
            1 | Update(input-state "direction")
        })
        Inputs.KeyDown("left" {
            2 | Update(input-state "direction")
        })
        Inputs.KeyDown("up" {
            3 | Update(input-state "direction")
        })

        snake-direction >= prev-dir
        input-state | Take("direction")
        Match([ ;; takes what was given from input
            0 {; right
                prev-dir:0 | When(Is(0) { ;; prev-dir:0 is taking the x
                    @i2(1 0) > snake-direction ;; if player pressed right and snake was previously not moving left or right, then change direction to move right
                })
            }
            1 {; down
                prev-dir:1 | When(Is(0) { ;;
                    @i2(0 1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
                })
            }
            2 {; left
                prev-dir:0 | When(Is(0) {
                    @i2(-1 0) > snake-direction ;; if player pressed left and snake was previously not moving left or right, then change direction to move left
                })
            }
            3 {; up
                prev-dir:1 | When(Is(0) {
                    @i2(0 -1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
                })
            }
        ])

        Animation.Timer(
            Duration: move-duration
            Looped: true
            Action: {


                snake-segments | RTake(0) ;; take the last element in the sequence which is the snake head
                Math.Add(snake-direction) = new-snake-head

                new-snake-head >> snake-segments

                ;; food collision logic
                food-pos
                If(Predicate: {
                    IsNotNone
                    And
                    new-snake-head | Is((food-pos | ToInt2))
                } Then: {
                    none > food-pos
                    score | Math.Add(1) > score
                    move-duration | Mul(0.95) > move-duration

                    {duration: 0.35 color: @f4(1.0 1.0 1.0 1.0)}
                    Detach(pulse-bg)
                } Else: {
                    DropFront(snake-segments)
                })

                ;; wall collision logic
                (new-snake-head | Take(0))
                When(Predicate: {
                    IsMoreEqual(grid-width)
                    Or
                    (new-snake-head | Take(1)) | IsMoreEqual(grid-length)
                    Or
                    (new-snake-head | Take(0)) | IsLess(0)
                    Or
                    (new-snake-head | Take(1)) | IsLess(0)
                    Or
                    snake-segments | Slice(From: 0 To: (Count(snake-segments) | Math.Subtract(2))) | IsAny(new-snake-head)
                } Action: {
                    true > game-over
                })

            }
        )

        food-pos
        When(Predicate: Is(none) Action: {
            ; Spawn new food if needed
            RandomInt(grid-width) = food-x
            RandomInt(grid-length) = food-y
            @i2(food-x food-y) > food-pos
        })
    } Looped: true)

    @wire(main-wire {
        GFX.MainWindow(
            Contents: {
                Once({
                    ; Create render steps
                    GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
                    GFX.DrawQueue = queue

                    40 >= font-size
                    @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

                    [@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments

                    {direction: 0} >= input-state
            @i2(1 0) >= snake-direction

                    0.15 >= move-duration

                    none | ToAny >= food-pos

                    0 >= score
                    false >= game-over

                    @f4(0.0 0.0 0.0 1.0) >= original-color
                    original-color | Set(Name:terminal-bg-color Global: true)

                })


                GFX.DrawablePass(Features: features Queue: queue) >> render-steps
                Do(post-fx)

                GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
                [vp font-size] | Memoize({
                    vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
                    vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
                    @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

                    font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
                    font-cell-size | Take(0) = font-size-width
                    font-cell-size | Take(1) = font-size-height
                    width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
                    height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

                    width | Div((font-size-width | ToFloat)) | ToInt | Max(1) = grid-width ;; dividing the screen into a grid based on font.
                    height | Div((font-size-height | ToFloat)) | ToInt | Max(1) = grid-length ;; Max ensures at least 1 cell in the grid

                    @f2(offset-x offset-y) | Add(view-offset) > view-offset

                    view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
                })
                GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

                ;; game logic
                game-over
                When(Predicate: Is(false) Action: {
                    Step(snake-game-logic)
                })

                ;; draw game
                GFX.DynMesh = dmesh

                0 >= repeat-idx
                snake-segments ;; snake body segments
                Repeat(
                    Action: {
                        snake-segments | Take(repeat-idx)
                        = coord
                            "█" | GFX.DynDrawText(
                            Font: font
                            FontSize: font-size
                            Output: dmesh
                            Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                            Scale: 1.0
                            Color: @f4(0.5 0.8 0.5 1.0)
                            VAlign: 1.0
                        )

                        repeat-idx | Math.Add(1) > repeat-idx
                    }

                    Until: {
                        repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
                    }
                )

                snake-segments | RTake(0) ;; snake head
                = head-coord
                "█" | GFX.DynDrawText(
                    Font: font
                    FontSize: font-size
                    Output: dmesh
                    Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                    Scale: 1.0
                    Color: @f4(0.1 1.0 0.1 1.0)
                    VAlign: 1.0
                )

                ;; draw food
                food-pos | When(Predicate: IsNotNone Action: {
                    "○" | GFX.DynDrawText(
                        Font: font
                        FontSize: font-size
                        Output: dmesh
                        Offset: (food-pos | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                        Scale: 1.0
                        Color: @f4(1.0 0.2 0.2 1.0) ;; red color
                        VAlign: 1.0
                    )
                })

                ;; display score
                ["Score: " score] | String.Format | GFX.DynDrawText(
                    Font: font
                    FontSize: font-size
                    Output: dmesh
                    Offset: (@f3(1.0 1.0 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
                    Scale: 1.0
                    Color: @f4(1.0 1.0 1.0 1.0) ;; white
                    VAlign: 1.0
                )

                "Game Over" = game-over-string
                (grid-width | Math.Divide(2)) | ToFloat = grid-width-center
                (grid-length| Math.Divide(2)) | ToFloat = grid-length-center
                Count(game-over-string) | Math.Divide(2) | ToFloat = str-center

                ;; display game over
                game-over
                When(Predicate: Is(true) Action: {
                    game-over-string | GFX.DynDrawText(
                        Font: font
                        FontSize: font-size
                        Output: dmesh
                        Offset: (@f3((grid-width-center | Math.Subtract(str-center)) grid-length-center 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
                        Scale: 1.0
                        Color: @f4(1.0 1.0 1.0 1.0) ;; white
                        VAlign: 1.0
                    )
                })

                dmesh | GFX.DynToMesh | DoMany({
                    {Take("mesh") = mesh}
                    {Take("texture") = texture}
                    Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
                } ComposeSync: true)

                GFX.Render(render-steps view)
        })
    } Looped: true)

    @mesh(main)
    @schedule(main main-wire)
    @run(main FPS: 60)

Global

`Detach` normally only uses a snapshot copy of it's parent's variables. But if it is a global variable, it will use the original variable and thus the changes will be reflected in the parent wire. Because we want the changes to `terminal-bg-color` to be reflected in the parent wire, we set it as `Global: true`

If you try running the code and collect fruits, you will notice the the screen flashing white. You might also notice the game looking slightly different! Don't worry, its a filter that we added in post.shs too, to elevate the overall aesthetic of the game!

Now to flash the screen red whenever we collide with the walls or snake body, we simply have to call the wire again and modify the wire's input.

```shards
{duration: 0.20 color: @f4(1.0 0.0 0.0 1.0)}

Detach(pulse-bg) ```

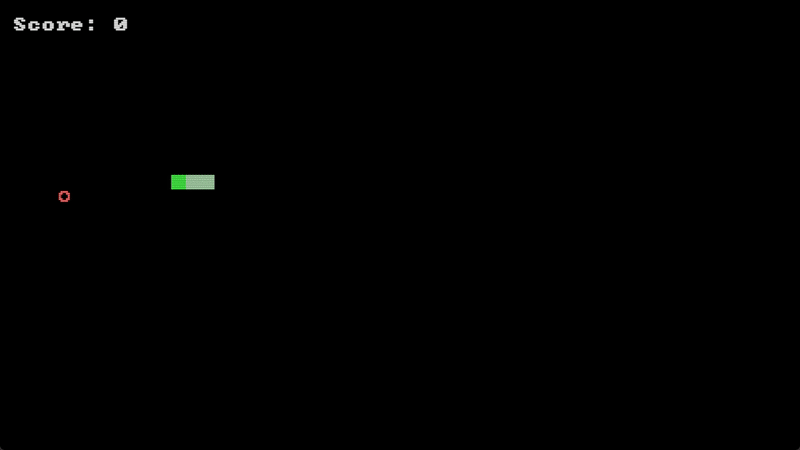

4_1

4.2 Resetting the game

Lastly, we want to be able to reset our game whenever we lose. First let's add to our game over text, to prompt the user to his "r", when they lose the game.

    "press r to reset" = reset-string
Count(reset-string) | Math.Divide(2) | ToFloat = reset-str-center

    reset-string | GFX.DynDrawText(
        Font: font
        FontSize: font-size
        Output: dmesh
        Offset: (@f3((grid-width-center | Math.Subtract(reset-str-center)) (grid-length-center | Math.Add(1.0)) 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
        Scale: 1.0
        Color: @f4(1.0 1.0 1.0 1.0) ;; white
        VAlign: 1.0
    )

Then when the player presses "r", we will reset all the important variables, like score, snake-segments , move-duration to their original values. We can then change our When conditional to an If to run the snake logic when game-over is false and run the Inputs.Keydown to reset the code when game-over is true.

    game-over
    If(Predicate: Is(false) Then: {
        Step(snake-game-logic)
    } Else: {
        Inputs.KeyDown("r" {
            false > game-over

            0 > score

            [@i2(10 10) @i2(11 10) @i2(12 10)] > snake-segments

            0.15 > move-duration

            none > food-pos

            @i2(1 0) > snake-direction

            {direction: 0} > input-state
        })
    })
    @include("post.shs")

@wire(pulse-bg { ;; flashes the sreen
  {Take("duration") = pulse-dur}
  {Take("color") = pulse-color}
  Animation.Timer(Duration: pulse-dur Action: {
  original-color > terminal-bg-color
  Stop
  }) | Div(pulse-dur)
  Lerp(First: pulse-color Second: original-color) > terminal-bg-color
} Looped: true)

@wire(snake-game-logic {
  ;; move snake

  Inputs.KeyDown("right" {
    0 | Update(input-state "direction")
  })
  Inputs.KeyDown("down" {
    1 | Update(input-state "direction")
  })
  Inputs.KeyDown("left" {
    2 | Update(input-state "direction")
  })
  Inputs.KeyDown("up" {
    3 | Update(input-state "direction")
  })

  snake-direction >= prev-dir
  input-state | Take("direction")
  Match([ ;; takes what was given from input
    0 {; right
      prev-dir:0 | When(Is(0) { ;; prev-dir:0 is taking the x
        @i2(1 0) > snake-direction ;; if player pressed right and snake was previously not moving left or right, then change direction to move right
      })
    }
    1 {; down
      prev-dir:1 | When(Is(0) { ;;
        @i2(0 1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
      })
    }
    2 {; left
      prev-dir:0 | When(Is(0) {
        @i2(-1 0) > snake-direction ;; if player pressed left and snake was previously not moving left or right, then change direction to move left
      })
    }
    3 {; up
      prev-dir:1 | When(Is(0) {
        @i2(0 -1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
      })
    }
  ])

  Animation.Timer(
    Duration: move-duration
    Looped: true
    Action: {


      snake-segments | RTake(0) ;; take the last element in the sequence which is the snake head
      Math.Add(snake-direction) = new-snake-head

      new-snake-head >> snake-segments

      ;; food collision logic
      food-pos
      If(Predicate: {
        IsNotNone
        And
        new-snake-head | Is((food-pos | ToInt2))
      } Then: {
        none > food-pos
        score | Math.Add(1) > score
        move-duration | Mul(0.95) > move-duration

        {duration: 0.35 color: @f4(1.0 1.0 1.0 1.0)}
        Detach(pulse-bg)
      } Else: {
        DropFront(snake-segments)
      })

      ;; wall collision logic
      (new-snake-head | Take(0))
      When(Predicate: {
        IsMoreEqual(grid-width)
        Or
        (new-snake-head | Take(1)) | IsMoreEqual(grid-length)
        Or
        (new-snake-head | Take(0)) | IsLess(0)
        Or
        (new-snake-head | Take(1)) | IsLess(0)
        Or
        snake-segments | Slice(From: 0 To: (Count(snake-segments) | Math.Subtract(2))) | IsAny(new-snake-head)
      } Action: {
        true > game-over

        {duration: 0.20 color: @f4(1.0 0.0 0.0 1.0)}
        Detach(pulse-bg)
      })

    }
  )

  food-pos
  When(Predicate: Is(none) Action: {
    ; Spawn new food if needed
    RandomInt(grid-width) = food-x
    RandomInt(grid-length) = food-y
    @i2(food-x food-y) > food-pos
  })
} Looped: true)

@wire(main-wire {
  GFX.MainWindow(
    Contents: {
      Once({
        ; Create render steps
        GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
        GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
        GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
        GFX.DrawQueue = queue

        40 >= font-size
        @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

        [@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments

        @i2(1 0) >= snake-direction
        {direction: 0} >= input-state

        0.15 >= move-duration

        none | ToAny >= food-pos

        0 >= score
        false >= game-over

        @f4(0.0 0.0 0.0 1.0) >= original-color
        original-color | Set(Name:terminal-bg-color Global: true)
      })


      GFX.DrawablePass(Features: features Queue: queue) >> render-steps
      Do(post-fx)

      GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
      [vp font-size] | Memoize({
        vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
        vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
        @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

        font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
        font-cell-size | Take(0) = font-size-width
        font-cell-size | Take(1) = font-size-height
        width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
        height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

        width | Div((font-size-width | ToFloat)) | ToInt | Max(1) = grid-width ;; dividing the screen into a grid based on font.
        height | Div((font-size-height | ToFloat)) | ToInt | Max(1) = grid-length ;; Max ensures at least 1 cell in the grid

        @f2(offset-x offset-y) | Add(view-offset) > view-offset

        view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
      })
      GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

      ;; game logic
      game-over
      If(Predicate: Is(false) Then: {
        Step(snake-game-logic)
      } Else: {
        Inputs.KeyDown(Key: "r" Action: {
          false > game-over

          0 > score

          [@i2(10 10) @i2(11 10) @i2(12 10)] > snake-segments

          0.15 > move-duration

          none > food-pos

          @i2(1 0) > snake-direction

          {direction: 0} > input-state
        })
      })

      ;; draw game
      GFX.DynMesh = dmesh

      0 >= repeat-idx
      snake-segments ;; snake body segments
      Repeat(
        Action: {
          snake-segments | Take(repeat-idx)
          = coord
            "█" | GFX.DynDrawText(
            Font: font
            FontSize: font-size
            Output: dmesh
            Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
            Scale: 1.0
            Color: @f4(0.5 0.8 0.5 1.0)
            VAlign: 1.0
          )

          repeat-idx | Math.Add(1) > repeat-idx
        }

        Until: {
          repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
        }
      )

      snake-segments | RTake(0) ;; snake head
      = head-coord
      "█" | GFX.DynDrawText(
        Font: font
        FontSize: font-size
        Output: dmesh
        Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
        Scale: 1.0
        Color: @f4(0.1 1.0 0.1 1.0)
        VAlign: 1.0
      )

      ;; draw food
      food-pos | When(Predicate: IsNotNone Action: {
        "○" | GFX.DynDrawText(
          Font: font
          FontSize: font-size
          Output: dmesh
          Offset: (food-pos | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
          Scale: 1.0
          Color: @f4(1.0 0.2 0.2 1.0) ;; red color
          VAlign: 1.0
        )
      })

      ;; display score
      ["Score: " score] | String.Format | GFX.DynDrawText(
        Font: font
        FontSize: font-size
        Output: dmesh
        Offset: (@f3(1.0 1.0 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
        Scale: 1.0
        Color: @f4(1.0 1.0 1.0 1.0) ;; white
        VAlign: 1.0
      )

      "Game Over" = game-over-string
      (grid-width | Math.Divide(2)) | ToFloat = grid-width-center
      (grid-length| Math.Divide(2)) | ToFloat = grid-length-center
      Count(game-over-string) | Math.Divide(2) | ToFloat = str-center

      "press r to reset" = reset-string
      Count(reset-string) | Math.Divide(2) | ToFloat = reset-str-center

      ;; display game over
      game-over
      When(Predicate: Is(true) Action: {
        game-over-string | GFX.DynDrawText(
          Font: font
          FontSize: font-size
          Output: dmesh
          Offset: (@f3((grid-width-center | Math.Subtract(str-center)) grid-length-center 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
          Scale: 1.0
          Color: @f4(1.0 1.0 1.0 1.0) ;; white
          VAlign: 1.0
        )

        reset-string | GFX.DynDrawText(
          Font: font
          FontSize: font-size
          Output: dmesh
          Offset: (@f3((grid-width-center | Math.Subtract(reset-str-center)) (grid-length-center | Math.Add(1.0)) 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
          Scale: 1.0
          Color: @f4(1.0 1.0 1.0 1.0) ;; white
          VAlign: 1.0
        )
      })

      dmesh | GFX.DynToMesh | DoMany({
        {Take("mesh") = mesh}
        {Take("texture") = texture}
        Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
      } ComposeSync: true)

      GFX.Render(render-steps view)
  })
} Looped: true)

@mesh(main)
@schedule(main main-wire)
@run(main FPS: 60)

Congratulations! You have successfully coded your first snake game!

4_1
