Step 2

In this step we will

  1. draw our snake on the screen and

  2. Set up a table system to hold the coordinates of our snake body.

  3. Have it move based on input.

2.1 Drawing our snake head on the screen

As mentioned in step 1, we will be using the characters "█" for the snake body and "○" for our fruits. To draw these characters in 3d space, we will have to use the GFX.DynMesh shards and GFX.DynToMesh to render our sequence of characters in 3D space.

What are GFX.DynMesh and GFX.DynToMesh

  • GFX.DynMesh It creates an empty, dynamic text mesh you can draw strings into (with GFX.DynDrawText, etc.). Each activation it clears itself, so you add whatever text you want this frame, then render it. Great for changing text like scores, timers, or your snake glyphs.

  • GFX.DynToMesh After you’ve filled the dynamic mesh with glyphs, GFX.DynToMesh converts it into the actual renderable pieces: a sequence of {mesh, texture} pairs you can feed into your usual render steps. You can also pick the winding order (CW for typical UI where Y points down, CCW for world space where Y points up).

First we set up our GFX.DynMesh which we can draw our characters on.

GFX.DynMesh = dmesh

Next we add the character to draw to our dmesh using GFX.DynDrawText. For now, let's draw our "█" in the arbitrary location (10.0 10.0). To convert our (10.0 10.0) grid position to world screen position, we multiply these coordinates by font-cell-size. Because GFX.DynDrawText takes the offset as a @f3, since it is drawing the character in 3D space, we have to convert both the location we are drawing it to and font-cell-size to a @f3. For the color of our character, let's use @f4(0.1 1.0 0.1 1.0) which is green.

"█" | GFX.DynDrawText(
            Font: font
            FontSize: font-size
            Output: dmesh
            Offset: (@f3(10.0 10.0 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
            Scale: 1.0
            Color: @f4(0.1 1.0 0.1 1.0)
            VAlign: 1.0
    )

What is the VAlign parameter

VAlign controls the vertical anchor for where your text is placed—i.e., which part of the cell our character sits.

VAlign = 0 → bottom of the line cell at Offset

VAlign = 1 → top of the line cell at Offset

VAlign = -0.5 → centred on the baseline (this is the default)

For grid-snapped glyphs with a top-left origin, VAlign: 1.0 (top) works naturally.

Lastly, we add the dmesh to our queue using GFX.DynToMesh.

dmesh | GFX.DynToMesh | DoMany({
    {Take("mesh") = mesh}
    {Take("texture") = texture}
    Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
} ComposeSync: true)

GFX.Render(render-steps view)
@wire(main-wire {
        GFX.MainWindow(
                Contents: {
                Once({
                        ; Create render steps
                        GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
                        GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
                        GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
                        GFX.DrawQueue = queue

                        40 >= font-size
                        @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

                })


                GFX.DrawablePass(Features: features Queue: queue) >> render-steps

                GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
                [vp font-size] | Memoize({
                        vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
                        vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
                        @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

                        font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
                        font-cell-size | Take(0) = font-size-width
                        font-cell-size | Take(1) = font-size-height
                        width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
                        height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

                        @f2(offset-x offset-y) | Add(view-offset) > view-offset

                        view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
                })
                GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

                GFX.DynMesh = dmesh

                "█" | GFX.DynDrawText(
                        Font: font
                        FontSize: font-size
                        Output: dmesh
                        Offset: (@f3(10.0 10.0 0.0) | Math.Multiply((font-cell-size | ToFloat3)))
                        Scale: 1.0
                        Color: @f4(0.1 1.0 0.1 1.0)
                        VAlign: 1.0
                )

                dmesh | GFX.DynToMesh | DoMany({
                        {Take("mesh") = mesh}
                        {Take("texture") = texture}
                        Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
                } ComposeSync: true)

                GFX.Render(render-steps view)
        })
} Looped: true)

@mesh(main)
@schedule(main main-wire)
@run(main FPS: 60)

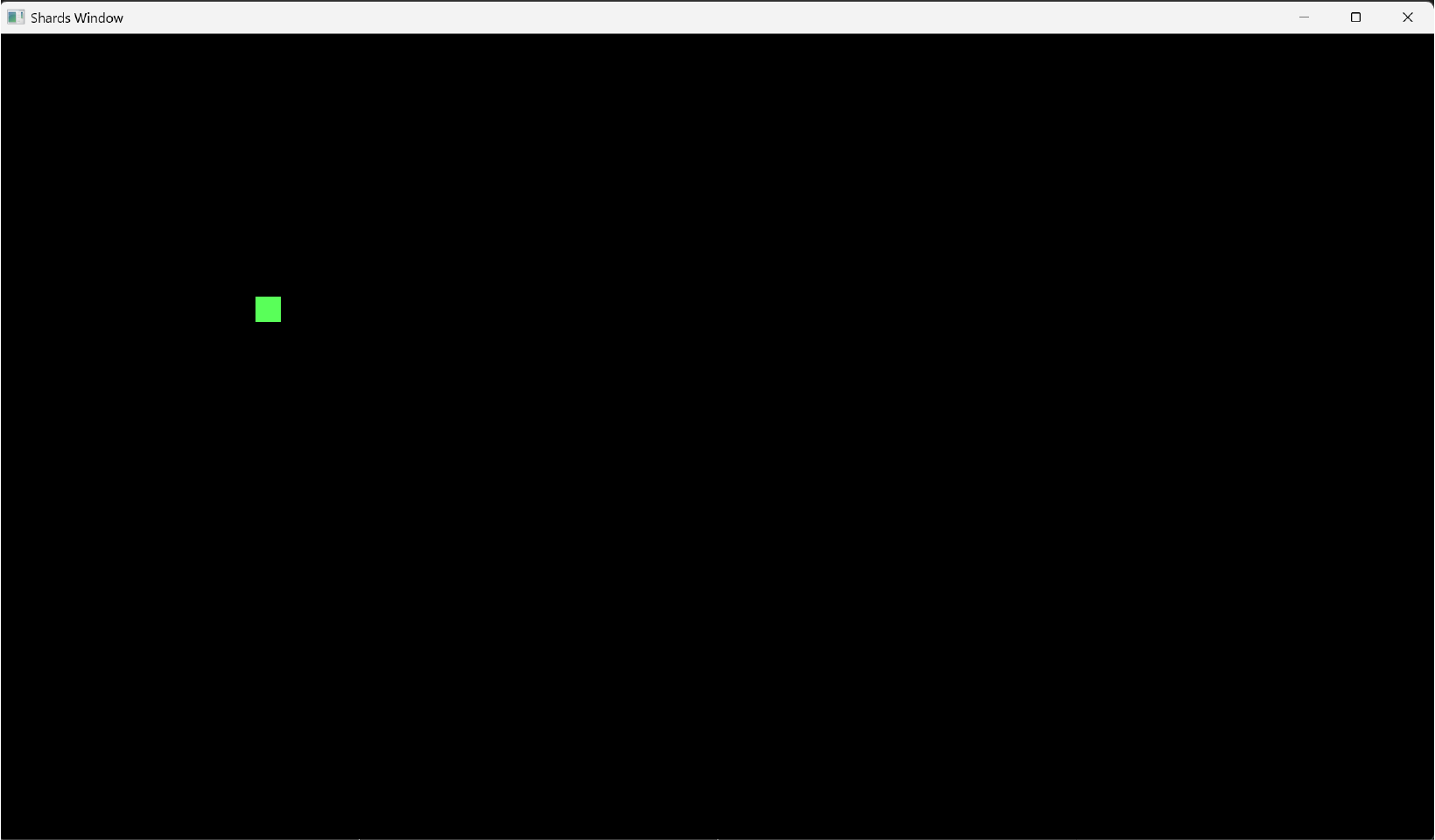

Try running the program and see if a green "█" is drawn on the screen. Try changing the location to see if it moves. If it does! Congratulations! You have successfully drawn our snake head.

2_1

2.2 Drawing our Snake body

Drawing our snake head is simple enough. The next step is to draw our snake body. To do this, we need a system to store our snake body and we need to ensure that it is dynamic, because this body and head will eventually move. We can do this by storing our snake segments information in a sequence. Let's create a sequence that will contain the grid location of each segment.

[@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments

Next, from these snake segments, we need to input the grid location information for each entry into a GFX.DynDrawText.

0 >= repeat-idx
    snake-segments ;; snake body segments
    Repeat(
        Action: {
            snake-segments | Take(repeat-idx)
            = coord
                "█" | GFX.DynDrawText(
                Font: font
                FontSize: font-size
                Output: dmesh
                Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                Scale: 1.0
                Color: @f4(0.5 0.8 0.5 1.0)
                VAlign: 1.0
            )

            repeat-idx | Math.Add(1) > repeat-idx
            Log("repeat ???")
        }

        Until: {
            repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
        }
    )

    snake-segments | RTake(0) ;; snake head
    = head-coord
    "█" | GFX.DynDrawText(
        Font: font
        FontSize: font-size
        Output: dmesh
        Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
        Scale: 1.0
        Color: @f4(0.1 1.0 0.1 1.0)
        VAlign: 1.0
    )
    @wire(main-wire {
        GFX.MainWindow(
            Contents: {
                Once({
                    ; Create render steps
                    GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
                    GFX.DrawQueue = queue

                    40 >= font-size
                    @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

                    [@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments

                })


                GFX.DrawablePass(Features: features Queue: queue) >> render-steps

                GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
                [vp font-size] | Memoize({
                    vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
                    vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
                    @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

                    font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
                    font-cell-size | Take(0) = font-size-width
                    font-cell-size | Take(1) = font-size-height
                    width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
                    height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

                    @f2(offset-x offset-y) | Add(view-offset) > view-offset

                    view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
                })
                GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

                GFX.DynMesh = dmesh

                0 >= repeat-idx
                snake-segments ;; snake body segments
                Repeat(
                    Action: {
                        snake-segments | Take(repeat-idx)
                        = coord
                            "█" | GFX.DynDrawText(
                            Font: font
                            FontSize: font-size
                            Output: dmesh
                            Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                            Scale: 1.0
                            Color: @f4(0.5 0.8 0.5 1.0)
                            VAlign: 1.0
                        )

                        repeat-idx | Math.Add(1) > repeat-idx
                    }

                    Until: {
                        repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
                    }
                )

                snake-segments | RTake(0) ;; snake head
                = head-coord
                "█" | GFX.DynDrawText(
                    Font: font
                    FontSize: font-size
                    Output: dmesh
                    Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                    Scale: 1.0
                    Color: @f4(0.1 1.0 0.1 1.0)
                    VAlign: 1.0
                )

                dmesh | GFX.DynToMesh | DoMany({
                    {Take("mesh") = mesh}
                    {Take("texture") = texture}
                    Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
                } ComposeSync: true)

                GFX.Render(render-steps view)
        })
    } Looped: true)

    @mesh(main)
    @schedule(main main-wire)
    @run(main FPS: 60)

Repeat Instead of ForEach

We are using a `Repeat` instead of a `ForEach` because a `ForEach` will automatically go through all of the sequence. `Repeat` however, allows us to set a condition so that it runs the code specified in the `Action` parameter until the second last snake segment. Which we want because the snake head will be the last entry in the sequence.

RTake

`RTake` takes from the end of the sequence instead of the front. So `RTake(0)` takes the last entry in the sequence which is our snake head.

Try running the code now and you'll be able to see our snake head and its two body segments!

2_1

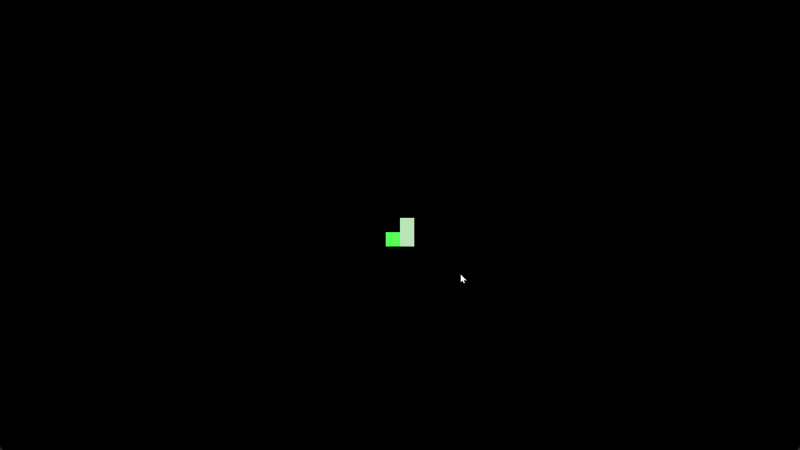

2.3 Making our Snake move

Now we are going to breathe life into our snake and make it move. To do this we have to add @i2(1 0) (for now we are just moving it right) to the coordinates of our snake head at a fixed rate. Then we have to shift the body along to follow suit.

First let's make a new @wire to keep our code organised and house our game logic. Then, let's take our current snake head, shift it right, and make it the new snake head. We also wrap this in an Animation.Timer so that we can control the rate of movement and shift it right once every fixed amount of seconds.

    @wire(snake-game {
        ;; move snake

        0.15 >= move-duration ;; initialize this in a once

        Animation.Timer(
            Duration: move-duration ;; you can change this to make the movement faster or slower
            Looped: true
            Action: {
                snake-segments | RTake(0) ;; take the last element in the sequence which is the snake head
                Math.Add(@i2(1 0)) = new-snake-head
                new-snake-head >> snake-segments
                DropFront(snake-segments)
            }
        )
    } Looped: true)

    Step(snake-game) ;; scheduled in our main-wire
    @wire(snake-game-logic {
        ;; move snake

        Animation.Timer(
            Duration: move-duration
            Looped: true
            Action: {
                snake-segments | RTake(0) ;; take the last element in the sequence which is the snake head
                Math.Add(@i2(1 0)) = new-snake-head
                new-snake-head >> snake-segments
                DropFront(snake-segments)
            }
        )
    } Looped: true)

    @wire(main-wire {
        GFX.MainWindow(
            Contents: {
                Once({
                    ; Create render steps
                    GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
                    GFX.DrawQueue = queue

                    40 >= font-size
                    @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

                    [@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments

                    0.15 >= move-duration

                })


                GFX.DrawablePass(Features: features Queue: queue) >> render-steps

                GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
                [vp font-size] | Memoize({
                    vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
                    vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
                    @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

                    font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
                    font-cell-size | Take(0) = font-size-width
                    font-cell-size | Take(1) = font-size-height
                    width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
                    height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

                    @f2(offset-x offset-y) | Add(view-offset) > view-offset

                    view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
                })
                GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

                ;; game logic
                Step(snake-game-logic)

                ;; draw game
                GFX.DynMesh = dmesh

                0 >= repeat-idx
                snake-segments ;; snake body segments
                Repeat(
                    Action: {
                        snake-segments | Take(repeat-idx)
                        = coord
                            "█" | GFX.DynDrawText(
                            Font: font
                            FontSize: font-size
                            Output: dmesh
                            Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                            Scale: 1.0
                            Color: @f4(0.5 0.8 0.5 1.0)
                            VAlign: 1.0
                        )

                        repeat-idx | Math.Add(1) > repeat-idx
                    }

                    Until: {
                        repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
                    }
                )

                snake-segments | RTake(0) ;; snake head
                = head-coord
                "█" | GFX.DynDrawText(
                    Font: font
                    FontSize: font-size
                    Output: dmesh
                    Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                    Scale: 1.0
                    Color: @f4(0.1 1.0 0.1 1.0)
                    VAlign: 1.0
                )

                dmesh | GFX.DynToMesh | DoMany({
                    {Take("mesh") = mesh}
                    {Take("texture") = texture}
                    Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
                } ComposeSync: true)

                GFX.Render(render-steps view)
        })
    } Looped: true)

    @mesh(main)
    @schedule(main main-wire)
    @run(main FPS: 60)

If you run the code now, congratulations! Our snake is moving. Next we want our snake to move in different directions based on our input.

First things first, let's setup our input system. We will be using Inputs.KeyDown. For now we can just print a message whenever the key's are pressed.

Inputs.KeyDown

Activates the code specified in the `Action` parameter only on the frame the key is pressed
    ;; Input Logic
    Inputs.KeyDown("right" {
        Msg("right pressed")
    })
    Inputs.KeyDown("down" {
        Msg("down pressed")
    })
    Inputs.KeyDown("left" {
        Msg("left pressed")
    })
    Inputs.KeyDown("up" {
        Msg("up pressed")
    })

Next, let's create a variable to hold our input state. We are going to use a table to hold this state. A table here is useful because if there's input state that we want to keep track of, we can simply add a new key.

    ;; Input Logic
    Once({
        {direction: 0} >= input-state ;; can be initialized in a once in main
    })

    Inputs.KeyDown("right" {
        0 | Update(input-state "direction")
    })
    Inputs.KeyDown("down" {
        1 | Update(input-state "direction")
    })
    Inputs.KeyDown("left" {
        2 | Update(input-state "direction")
    })
    Inputs.KeyDown("up" {
        3 | Update(input-state "direction")
    })

Next we change the @i2 being added to our snake head based on the direction of our input-state. However, we also have to take in consideration, for the game Snake, traditionally, if the snake is already moving in that direction, we cannot have it reverse direction. For example, if our snake is moving right, and we press on the left button, it should continue to move right. Thus we have to also take note of the direction that our snake is already moving in.

    @i2(1 0) >= snake-direction ;; can be initialized in a once in main

    snake-direction >= prev-dir
    input-state | Take("direction")
    Match([ ;; takes what was given from input
        0 {; right
            prev-dir:0 | When(Is(0) { ;; prev-dir:0 is taking the x
                @i2(1 0) > snake-direction ;; if player pressed right and snake was previously not moving left or right, then change direction to move right
            })
        }
        1 {; down
            prev-dir:1 | When(Is(0) { ;;
                @i2(0 1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
            })
        }
        2 {; left
            prev-dir:0 | When(Is(0) {
                @i2(-1 0) > snake-direction ;; if player pressed left and snake was previously not moving left or right, then change direction to move left
            })
        }
        3 {; up
            prev-dir:1 | When(Is(0) {
                @i2(0 -1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
            })
        }
    ])
    @wire(snake-game-logic {
        ;; move snake

        Inputs.KeyDown("right" {
            0 | Update(input-state "direction")
        })
        Inputs.KeyDown("down" {
            1 | Update(input-state "direction")
        })
        Inputs.KeyDown("left" {
            2 | Update(input-state "direction")
        })
        Inputs.KeyDown("up" {
            3 | Update(input-state "direction")
        })

        snake-direction >= prev-dir
        input-state | Take("direction")
        Match([ ;; takes what was given from input
            0 {; right
                prev-dir:0 | When(Is(0) { ;; prev-dir:0 is taking the x
                    @i2(1 0) > snake-direction ;; if player pressed right and snake was previously not moving left or right, then change direction to move right
                })
            }
            1 {; down
                prev-dir:1 | When(Is(0) { ;;
                    @i2(0 1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
                })
            }
            2 {; left
                prev-dir:0 | When(Is(0) {
                    @i2(-1 0) > snake-direction ;; if player pressed left and snake was previously not moving left or right, then change direction to move left
                })
            }
            3 {; up
                prev-dir:1 | When(Is(0) {
                    @i2(0 -1) > snake-direction ;; if player pressed down and snake was previously not moving up or down, then change direction to move down
                })
            }
        ])

        Animation.Timer(
            Duration: move-duration
            Looped: true
            Action: {


                snake-segments | RTake(0) ;; take the last element in the sequence which is the snake head
                Math.Add(snake-direction) = new-snake-head
                new-snake-head >> snake-segments
                DropFront(snake-segments)
            }
        )
    } Looped: true)

    @wire(main-wire {
        GFX.MainWindow(
            Contents: {
                Once({
                    ; Create render steps
                    GFX.BuiltinFeature(BuiltinFeatureId::Transform) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::BaseColor) >> features
                    GFX.BuiltinFeature(BuiltinFeatureId::AlphaBlend) >> features
                    GFX.DrawQueue = queue

                    40 >= font-size
                    @read("./snake/Px437_IBM_EGA_8x8.ttf" Bytes: true) | GFX.FontMap = font ;; change the file path to where your font ttf file is stored

                    [@i2(10 10) @i2(11 10) @i2(12 10)] >= snake-segments
                    {direction: 0} >= input-state
                    @i2(1 0) >= snake-direction

                    0.15 >= move-duration

                })


                GFX.DrawablePass(Features: features Queue: queue) >> render-steps

                GFX.Viewport = vp ;; gets the screen's left, top, right, btm coordinates
                [vp font-size] | Memoize({
                    vp:2 | Sub((vp:0)) | ToFloat = width ;; screen width
                    vp:3 | Sub((vp:1)) | ToFloat = height ;; screen height
                    @f2(width height) | Math.Multiply(@f2(-0.5 -0.5)) >= view-offset ;; makes the grid start from the top left of the screen

                    font | GFX.FontSpaceSize(font-size) | ToFloat2 = font-cell-size
                    font-cell-size | Take(0) = font-size-width
                    font-cell-size | Take(1) = font-size-height
                    width | Math.Mod((font-size-width)) | Math.Multiply(0.5) = offset-x
                    height | Math.Mod((font-size-height)) | Math.Multiply(0.5) = offset-y

                    @f2(offset-x offset-y) | Add(view-offset) > view-offset

                    view-offset | ToFloat3 | Math.Translation = view-transform ;; final view transform
                })
                GFX.View(View: view-transform OrthographicSize: @f2(1.0 -1.0) OrthographicSizeType: OrthographicSizeType::PixelScale) = view

                ;; game logic
                Step(snake-game-logic)

                ;; draw game
                GFX.DynMesh = dmesh

                0 >= repeat-idx
                snake-segments ;; snake body segments
                Repeat(
                    Action: {
                        snake-segments | Take(repeat-idx)
                        = coord
                            "█" | GFX.DynDrawText(
                            Font: font
                            FontSize: font-size
                            Output: dmesh
                            Offset: (coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                            Scale: 1.0
                            Color: @f4(0.5 0.8 0.5 1.0)
                            VAlign: 1.0
                        )

                        repeat-idx | Math.Add(1) > repeat-idx
                    }

                    Until: {
                        repeat-idx | Is((Count(snake-segments) | Math.Subtract(1))) ;; repeat only until the second last segment
                    }
                )

                snake-segments | RTake(0) ;; snake head
                = head-coord
                "█" | GFX.DynDrawText(
                    Font: font
                    FontSize: font-size
                    Output: dmesh
                    Offset: (head-coord | ToFloat3 | Math.Multiply((font-cell-size | ToFloat3)))
                    Scale: 1.0
                    Color: @f4(0.1 1.0 0.1 1.0)
                    VAlign: 1.0
                )

                dmesh | GFX.DynToMesh | DoMany({
                    {Take("mesh") = mesh}
                    {Take("texture") = texture}
                    Math.MatIdentity | GFX.Drawable(mesh Params: {baseColorTexture: texture}) | GFX.Draw(queue)
                } ComposeSync: true)

                GFX.Render(render-steps view)
        })
    } Looped: true)

    @mesh(main)
    @schedule(main main-wire)
    @run(main FPS: 60)

Try running the code now and changing the direction! Well done, we have successfully moved our snake. In the next step we will add the fruits for our snake to collect and earn points and more game logic!

2_3
